   Home > Products > 218ZW series Motor for Electric Motorcycle

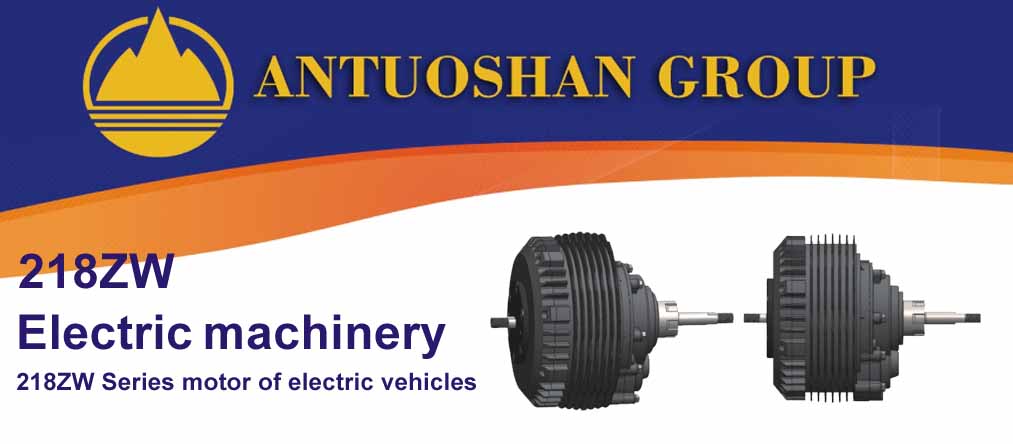

218ZW series Motor for Electric Motorcycle
Main characteristics:
Unique pole and slot fit design,small cogging torque,smooth operation;

The stator and rotor are designed with double sine,the back EMF is close to the pure sine wave,and the back EMF waveform distortion rate is up to 0.6%;

Wide load and wide speed range has a very high efficiency indicators,more energy saving and environmental protection,the rated load aging rate of about 91%.Energy efficiency index of "30253-2013"(GB)variable frequency drive permanent magnet synchrous motor energy efficiency rating standard “Ⅱ” class.

The series motor with mechanical reducer,can make the motor at low speed,has the characteristics of super torque,especially suitable for mountain electric vehicles and police electric vehicles;

The series motor is small in size,light in weight and high in power.It is suitable for large electric vehicle with large wheels.


Main technical parameters

Serial number
Motor specification
Rated voltage
  (VDC)
Rated torque
(N·m)
Rated speed
(r/min)
Rated power
(W)
Peak torque
(N·m)
peak power
(W)
system efficiency
(%)
1
218ZW-J6025411NA
60
11.0
2500
3000
28.0
5000
86.3
218ZW-J6025411NA
60
15.0
2500
4000
38.0
6000
86.8
2
218ZW-J6025411NA
72
11.0
2500
3000
28.0
5000
87.0
218ZW-J6025411NA
72
15.0
2500
4000
38.0
6000
87.2
3
218ZW-J6025411NA
72
15.0
3000
5000
38.0
7500
87.3
Note: the parameters in the table are for selection and can be adjusted according to the needs of users.
